Name: PP Manual Butt Fusion Welding Machine OEM Design
Brand: HEBEI ZEMO TECHNOLOGY CO., LTD.
SKU: SMD-B160/50M
Price: 50.00 USD
Availability: InStock

Inicio Productos Máquina manual de la soldadura por fusión del extremo

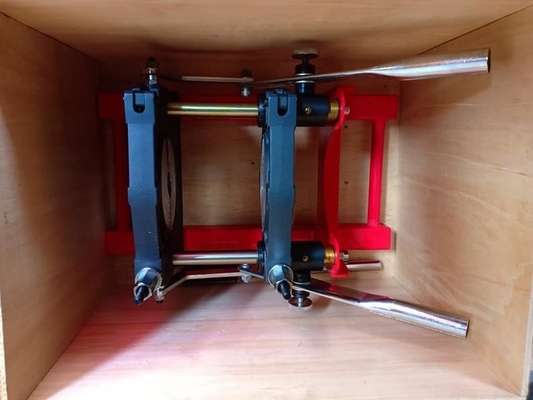

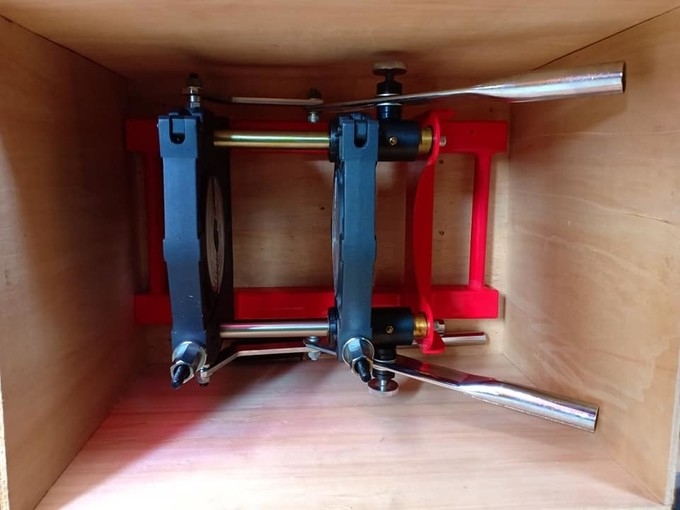

PP Manual Butt Fusion Welding Machine OEM Design

Datos del producto:

Lugar de origen:	China
Nombre de la marca:	ZEMO
Certificación:	CE , ISO
Número de modelo:	SMD-B160/50M

Pago y Envío Términos:

Cantidad de orden mínima:	1 SISTEMA
Precio:	negotiable
Detalles de empaquetado:	Casos de Polywood
Tiempo de entrega:	3-7 días laborables después del pago
Condiciones de pago:	L/C, D/A, D/P, T/T, Western Union, MoneyGram
Capacidad de la fuente:	300 sistemas/mes

Contacto

Descripción detallada del producto

Nombre de producto:	Máquina manual de la fusión de la soldadura de extremo	Tamaño del tubo (milímetro:	50,63,75,90,110,125,140,160,
Placa solar Max. Temp.:	℃ 270	Temp.deviation en la superficie (℃ 170-250):	≤±5℃
Voltaje de funcionamiento:	220V, 50/60HZ, monofásico	Poder de la placa solar:	1KW
Poder de cepillado de la herramienta:	0.7KW	Poder total:	1.75KW
Peso:	44kG	Garantía:	24 meses
Resaltar:	PP Manual Butt Fusion Welding Machine , OEM Manual Butt Fusion Welding Machine , Manual Butt Fusion Welder

Manual Butt Weld Fusion Machine Description

Manul Butt Weld Fusion Machine is able to weld pipes and fittings with material PE, PP and PVDF, operation easily and suitable for any complex work condition. It Consists of basic frame, hydraulic unit, planing tool, heating plate, support for planing tool& heating plate, and optional parts

Manual Butt Weld Fusion Machine Specification

product name		160MM Manual Butt Weld Fusion Machine
Model		SMD-B160/50M
Pipe size (mm)		50,63,75,90,110,125,140,160
Pipe material		PE PP PVDF PPR HDPE etc
Heating plate Max. Temperature		270℃
application		Butt Weld Fusion PE PP PVDF PPR HDPE etc
Temp.deviation in surface (170-250 ℃)		≤±7℃
Working Voltage		220V , 50/60HZ , single phase
Heating plate power		1KW
Planing tool power		0.7KW
Total Power		1.7KW
Weight		44KG
Packing	Cases	2 plywood cases
	Volume	0.31CBM

Manual Butt Weld Fusion Machine Advtange

Removable PTFE coated heating plate with separate temperature control system.
Electrical planning tool;
Be made of lightweight and high strength material; simple structure, small and delicate user friendly;
Low starting pressure ensures reliable welding quality of small pipes;
Separate two-channel timer shows time in soaking and cooling phases;
High-accurate and shockproof pressure meter in indicates clear readings.

Manual Butt Weld Fusion Machine Guarantee and Service

All designed according to ISO21307:2011(E),ISO12176-1 and DVS2207/1(08/2007)
International warranty: 24months.
